关于Brocade SAN switch Porterrshow命令输出解释

温馨提示:
本文最后更新于 2023年11月28日,已超过 376 天没有更新。若文章内的图片失效(无法正常加载),请留言反馈或直接联系我

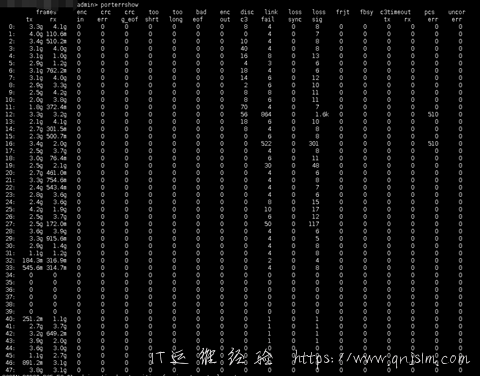

在博科FC系列交换机上执行porterrshow可以看到个端口的一些数据如CRC、传输帧,一下是对各列的解释说明

关于Brocade SAN switch Porterrshow命令输出解释




Frames tx/rx

– Counters representing the number of frames transmitted. This would be a place to gauge the traffic.

enc_in - 8bit/10bit encoding errors inside frame. Words inside of frames are encoded, if this encoding is corrupted or an error is detected enc_in is generated. If this counter is increasing, SFP/cable needs to be checked/replaced.

enc in/out

- 8bit/10bit encoding errors occurred in words (ordered sets) in/outside the Fibre Channel frame. Words in/outside of frames are encoded, if this encoding is corrupted or an error is detected enc in/out is generated. This is a sign of a hardware problem. Suggested actions would be to replace the cable or SFP, move cable to another port, or run porttest.

Note: Minimum compliance with the link bit error rate specification on a link continuously receiving frames would cause approximately one error every 20 minutes. Reinitialisation / reboots of the associated Nx-port can also cause these errors.

enc_out errors on their own imply a cable/connector problem. Enc_out errors and crc_err together imply GBIC/SFP problem

crc_err

- A mathematical formula generates counters at the sending port. The receiving port uses the same formula to check and compare. Generally speaking. crc_err and enc_out errors together imply GBIC/SFP problem. Suggested actions would be to replace the cable or SFP, move cable to another port, or run porttest.

Too_long

 FC frames are 2148 bytes maximum. Frames that were longer than the FC maximum (SOF+header+2112bytes+CRC+EOF). If an eof is corrupted or data generation is incorrect a too_long error is reported.

Too_short

The too_short error statstics counter is incremented whenever a frame, bounded by an SOF and EOF, is received and the number of words between the SOF and EOF is less than 7 words (6 words header plus 1 word CRC), i.e. 38 bytes (not 48) including the SOF and EOF.

This could be caused by the transmitter, or an unreliable link.

bad_eof

- After a loss of synchronization error continuous mode alignment allows the receiver to reestablish word alignment at any point in the incoming bit stream while the receiver is operational. Such realignment is likely (but not guaranteed) to result in code violations and subsequent loss of synchronization. Under certain conditions, it may be possible to realign an incoming bit stream without loss of synchronization. If such a realignment occurs within a received frame, detection of the resulting error condition is dependent upon higher-level function (e.g., invalid CRC,missing EOF Delimiter).

Disc c3

– Discard class 3 errors could be generated by a switch when devices send frames without performing a FLOGI first or send frames to an invalid destination. This error is just reporting that such a discard occurred.

Link fail

– If a port remains in the LR Receive State for a period of time greater than a timeout period (R_T_TOV), a Link Reset Protocol Timeout shall be detected which results in a Link Failure condition (enter the NOS Transmit State). The link failure also indicates that loss of signal or loss of sync lasting longer than the R_T_TOV value was detected while not in the Offline state.

Loss sync

– Synchronization failures on either bit or transmission word boundaries are not separately identifiable and cause loss-of synchronization errors.

Loss sig

- Loss of signal
