Nagios Check_nrpe使用TSL进行加密传输

温馨提示:
本文最后更新于 2021年08月16日,已超过 1,177 天没有更新。若文章内的图片失效(无法正常加载),请留言反馈或直接联系我

问题,要求,监控需要进行加密传输,确保数据安全,如无法使用nrpe,请参考

博客另外一篇文章

nsclient++ 使用check_nrpe监控windos

本文采用TSL方式来加密

说明:

我的测试环境没有真正的CA服务器,所有这里我们用Nagios服务器作为CA服务器,

正式部署是请使用专门的CA服务器。




正式创建准备

[root@nagios ~]# mkdir -p -m 750 /usr/local/nagios/etc/ssl

[root@nagios ~]# chown root.nagios /usr/local/nagios/etc/ssl

[root@nagios ~]# cd /usr/local/nagios/etc/ssl/

[root@nagios ssl]# mkdir -m 750 ca nagios_server_certs client_certs

[root@nagios ssl]# chown root.root ca

[root@nagios ssl]# chown root.nagios nagios_server_certs client_certs

[root@nagios ssl]# touch /etc/pki/CA/index.txt

[root@nagios ssl]# echo '1000' > /etc/pki/CA/serial

[root@nagios ssl]# cd /usr/local/nagios/etc/ssl/ca/




创建CA正式

[root@nagios ca]# openssl req -x509 -newkey rsa:4096 -keyout ca_key.pem -out ca_cert.pem -utf8 -days 3650

Generating a 4096 bit RSA private key

......................................................................................................................................................++

........................................................................................................................................................++

writing new private key to 'ca_key.pem'

Enter PEM pass phrase:**********

Verifying - Enter PEM pass phrase:**********

-----

You are about to be asked to enter information that will be incorporated

into your certificate request.

What you are about to enter is what is called a Distinguished Name or a DN.

There are quite a few fields but you can leave some blank

For some fields there will be a default value,

If you enter '.', the field will be left blank.

-----

Country Name (2 letter code) [XX]:CN

State or Province Name (full name) []:BeiJing

Locality Name (eg, city) [Default City]:ChaoYang

Organization Name (eg, company) [Default Company Ltd]:Nec

Organizational Unit Name (eg, section) []:Monitoring

Common Name (eg, your name or your server's hostname) []:Nagios

Email Address []:nagios@nagioschina.club

[root@nagios ca]#




以上红色标记的部分为输入部分,根据自己的情况输入,完成后会在目录下生成两个文件




创建客户端证书

[root@nagios ca]# cd /usr/local/nagios/etc/ssl/client_certs/

[root@nagios client_certs]# openssl req -new -newkey rsa:2048 -keyout client_cert.key -out client_cert.csr -nodes

Generating a 2048 bit RSA private key

...................+++

...............+++

writing new private key to 'client_cert.key'

-----

You are about to be asked to enter information that will be incorporated

into your certificate request.

What you are about to enter is what is called a Distinguished Name or a DN.

There are quite a few fields but you can leave some blank

For some fields there will be a default value,

If you enter '.', the field will be left blank.

-----

Country Name (2 letter code) [XX]:CN

State or Province Name (full name) []:BeiJing

Locality Name (eg, city) [Default City]:ChaoYang

Organization Name (eg, company) [Default Company Ltd]:Nec

Organizational Unit Name (eg, section) []:Monitoring

Common Name (eg, your name or your server's hostname) []:WindosClient

Email Address []:nagios@nagioschina.club




Please enter the following 'extra' attributes

to be sent with your certificate request

A challenge password []: //这里不输入,直接回车

An optional company name []: //同上

[root@nagios client_certs]#







使用CA证书认证生成的客户端证书

[root@nagios client_certs]# cd /usr/local/nagios/etc/ssl/

[root@nagios ssl]# openssl ca -days 365 -notext -md sha256 -keyfile ca/ca_key.pem -cert ca/ca_cert.pem -in client_certs/client_cert.csr -out client_certs/client_cert.pem

Using configuration from /etc/pki/tls/openssl.cnf

Enter pass phrase for ca/ca_key.pem:********** //输入创建CA证书设置的密码

Check that the request matches the signature

Signature ok

Certificate Details:

Serial Number: 4096 (0x1000)

Validity

Not Before: Aug 15 02:06:42 2017 GMT

Not After : Aug 15 02:06:42 2018 GMT

Subject:

countryName = CN

stateOrProvinceName = BeiJing

organizationName = Nec

organizationalUnitName = Monitoring

commonName = WindosClient

emailAddress = nagios@nagioschina.club

X509v3 extensions:

X509v3 Basic Constraints:

CA:FALSE

Netscape Comment:

OpenSSL Generated Certificate

X509v3 Subject Key Identifier:

79:46:54:03:52:07:58:B7:1C:9A:71:A1:B0:FD:72:E9:1E:F9:56:C4

X509v3 Authority Key Identifier:

keyid:99:FE:BF:D2:4F:E9:F6:1D:34:A4:98:78:A7:8A:25:44:47:0C:0B:52




Certificate is to be certified until Aug 15 02:06:42 2018 GMT (365 days)

Sign the certificate? [y/n]:y







1 out of 1 certificate requests certified, commit? [y/n]y

Write out database with 1 new entries

Data Base Updated

[root@nagios ssl]#







执行完成后会生成两个文件

client_certs/client_cert.pem

client_certs/client_cert.key

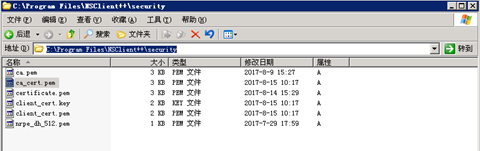

需要把以上的两个文件和CA文件ca/ca_cert.pem拷贝到客户端上目录如下,C:\Program Files\NSClient++\security

Nagios Check_nrpe使用TSL进行加密传输-图片1

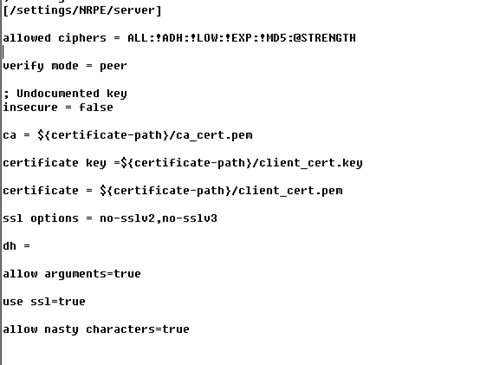

nsclient++配置如下,

[/settings/NRPE/server]




allowed ciphers = ALL:!ADH:!LOW:!EXP:!MD5:@STRENGTH




verify mode = peer

insecure = false

ca = ${certificate-path}/ca_cert.pem

certificate key =${certificate-path}/client_cert.key

certificate = ${certificate-path}/client_cert.pem

ssl options = no-sslv2,no-sslv3

dh =

allow arguments=true

use ssl=true

allow nasty characters=true

Nagios Check_nrpe使用TSL进行加密传输-图片2







服务器证书创建,和创建客户端证书一样




[root@nagios ssl]# cd /usr/local/nagios/etc/ssl/nagios_server_certs/

[root@nagios nagios_server_certs]# openssl req -new -newkey rsa:2048 -keyout nagios_server.key -out nagios_server.csr -nodes

Generating a 2048 bit RSA private key

........................+++

..................................................+++

writing new private key to 'nagios_server.key'

-----

You are about to be asked to enter information that will be incorporated

into your certificate request.

What you are about to enter is what is called a Distinguished Name or a DN.

There are quite a few fields but you can leave some blank

For some fields there will be a default value,

If you enter '.', the field will be left blank.

-----

Country Name (2 letter code) [XX]:CN

State or Province Name (full name) []:BeiJing

Locality Name (eg, city) [Default City]:ChaoYang

Organization Name (eg, company) [Default Company Ltd]:nEC

Organizational Unit Name (eg, section) []:Monitoring

Common Name (eg, your name or your server's hostname) []:Nagios_Server

Email Address []:nagios@nagioschina.club




Please enter the following 'extra' attributes

to be sent with your certificate request

A challenge password []: //这里不输入,直接回车

An optional company name []: //这里不输入,直接回车

[root@nagios nagios_server_certs]#




使用CA签发服务器证书

[root@nagios nagios_server_certs]# cd /usr/local/nagios/etc/ssl/







========报错啦====================

Using configuration from /etc/pki/tls/openssl.cnf

Enter pass phrase for ca/ca_key.pem:

Check that the request matches the signature

Signature ok

The organizationName field needed to be the same in the

CA certificate (Nec) and the request (nEC)




马虎了在输入组织名称时开着大写输入错误了,删掉重新创建服务器端证书。

==============================

步骤和客户端一样

[root@nagios ssl]# openssl ca -days 365 -notext -md sha256 -keyfile ca/ca_key.pem -cert ca/ca_cert.pem -in nagios_server_certs/nagios_server.csr -out nagios_server_certs/nagios_server.pem

Using configuration from /etc/pki/tls/openssl.cnf

Enter pass phrase for ca/ca_key.pem:********** //输入创建CA证书设置的密码

Check that the request matches the signature

Signature ok

Certificate Details:

Serial Number: 4097 (0x1001)

Validity

Not Before: Aug 15 02:34:04 2017 GMT

Not After : Aug 15 02:34:04 2018 GMT

Subject:

countryName = CN

stateOrProvinceName = BeiJing

organizationName = Nec

organizationalUnitName = Monitoring

commonName = Nagios_server

emailAddress = nagios@nagioschina.club

X509v3 extensions:

X509v3 Basic Constraints:

CA:FALSE

Netscape Comment:

OpenSSL Generated Certificate

X509v3 Subject Key Identifier:

38:78:9C:6D:F5:D4:BA:6A:AB:D2:76:DE:23:82:56:9D:69:FC:37:52

X509v3 Authority Key Identifier:

keyid:99:FE:BF:D2:4F:E9:F6:1D:34:A4:98:78:A7:8A:25:44:47:0C:0B:52




Certificate is to be certified until Aug 15 02:34:04 2018 GMT (365 days)

Sign the certificate? [y/n]:y







1 out of 1 certificate requests certified, commit? [y/n]y

Write out database with 1 new entries

Data Base Updated

[root@nagios ssl]#







和客户端证书一样会生成两个文件

nagios_server_certs/nagios_server.pem

nagios_server_certs/nagios_server.key

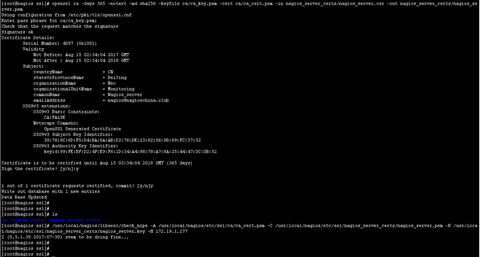

Check_nrpe 验证

[root@nagios ssl]# /usr/local/nagios/libexec/check_nrpe -A /usr/local/nagios/etc/ssl/ca/ca_cert.pem -C /usr/local/nagios/etc/ssl/nagios_server_certs/nagios_server.pem -K /usr/local/nagios/etc/ssl/nagios_server_certs/nagios_server.key -H 172.19.1.177

I (0.5.1.39 2017-07-30) seem to be doing fine...

[root@nagios ssl]#

Nagios Check_nrpe使用TSL进行加密传输-图片3




也可以写入到文件中在调用,把相关的命令写入到配置文件中

[root@nagios libexec]# echo "-C /usr/local/nagios/etc/ssl/nagios_server_certs/nagios_server.pem" >>/usr/local/nagios/libexec/check_nrpe.conf

[root@nagios libexec]# echo "-K /usr/local/nagios/etc/ssl/nagios_server_certs/nagios_server.key" >>/usr/local/nagios/libexec/check_nrpe.conf

[root@nagios libexec]# echo "-A /usr/local/nagios/etc/ssl/ca/ca_cert.pem" >>/usr/local/nagios/libexec/check_nrpe.conf

[root@nagios libexec]# echo "-2" >>/usr/local/nagios/libexec/check_nrpe.conf

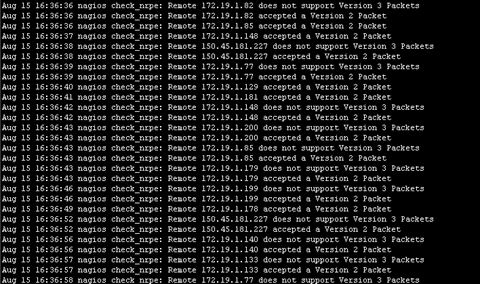

-2使用nrpe版本协议进行数据传输,nsclient++不支持版本3的数据。不加这项日志会有以下信息刷屏,对排错不好

Aug 15 16:36:43 nagios check_nrpe: Remote 172.19.1.179 does not support Version 3 Packets

Aug 15 16:36:43 nagios check_nrpe: Remote 172.19.1.179 accepted a Version 2 Packet

Aug 15 16:36:46 nagios check_nrpe: Remote 172.19.1.199 does not support Version 3 Packets

Aug 15 16:36:46 nagios check_nrpe: Remote 172.19.1.199 accepted a Version 2 Packet

Aug 15 16:36:49 nagios check_nrpe: Remote 172.19.1.178 accepted a Version 2 Packet

Aug 15 16:36:52 nagios check_nrpe: Remote 150.45.181.227 does not support Version 3 Packets

Aug 15 16:36:52 nagios check_nrpe: Remote 150.45.181.227 accepted a Version 2 Packet

Aug 15 16:36:56 nagios check_nrpe: Remote 172.19.1.140 does not support Version 3 Packets

Aug 15 16:36:56 nagios check_nrpe: Remote 172.19.1.140 accepted a Version 2 Packet

Aug 15 16:36:57 nagios check_nrpe: Remote 172.19.1.133 does not support Version 3 Packets

Aug 15 16:36:57 nagios check_nrpe: Remote 172.19.1.133 accepted a Version 2 Packet

Aug 15 16:36:58 nagios check_nrpe: Remote 172.19.1.77 does not support Version 3 Packets

Nagios Check_nrpe使用TSL进行加密传输-图片4




使用配置文件有两种方式,当然是加-f参数比较方便

Nagios Check_nrpe使用TSL进行加密传输-图片5

下一步我们添加到Nagios命令文件这个不说步骤了

define command {

command_name         check_nrpe_windos

command_line         $USER1$/check_nrpe_v3 -f check_nrpe.conf -H $HOSTADDRESS$ -c $ARG1$ $ARG2$

register         1

}




我这里使用的check_nrpe_v3,是另外安装的一个nrpe3.2版本,以前安装的为3.1版本,







如何验证证书是否正常使用

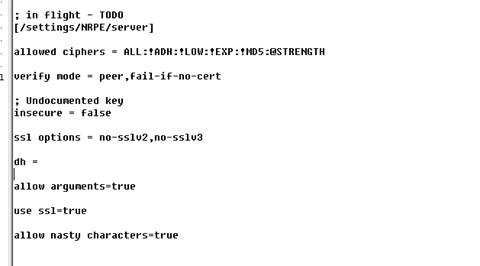

在Nsclient++中修改verify mode 认证模式,对端认证,

verify mode = peer,fail-if-no-cert




返回客户端使用命令查看就会发现结果,不使用证书时无法正常连接

Nagios Check_nrpe使用TSL进行加密传输-图片6




使用-S 验证加密类型 -S TLSv1.2+ ,时支持TLS安全协议的




Nagios Check_nrpe使用TSL进行加密传输-图片7







把nsclent+++的证书相关选项去掉,插件也无法正常工作

Nagios Check_nrpe使用TSL进行加密传输-图片8




Nagios Check_nrpe使用TSL进行加密传输-图片9




好了加密说明就到这里了。当然使用无法认证的正式,两边的通信也是无法正常建立的
